Home>Products>Verstärker>CA30/40

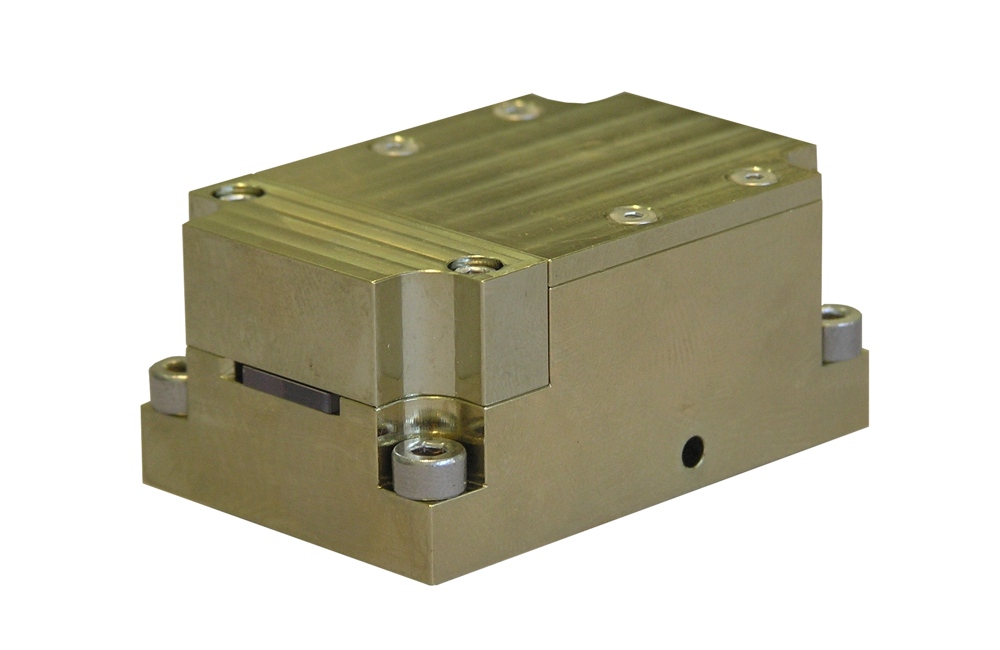

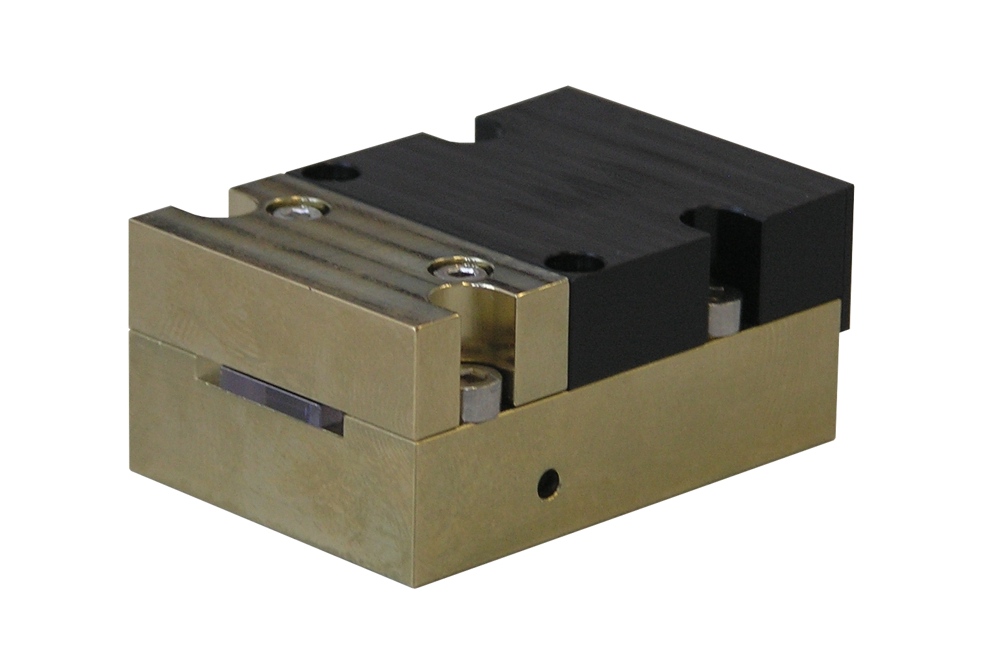

CA30/40

  • ultra compact DPSS amplifiers
  • fundamental wavelength 1064 nm
  • Peltier-cooled
  • high amplification
  • easy to integrate
  • version CA40 sealed design
  • developed for amplification of short pulse lasers



Specifications

ModelCA30-YAGCA40-YAG
Wavelength1064 nm1064 nm
Amplification @ 50 μJ 1kHz Input2020
Amplification @ 150 μJ 5kHz Input88
Input Beam Diameter350 ... 400 μm350 ... 400 μm
Angle of Incidence18.6°18.6°
Diode Current0 ... 60 A0 ... 60 A
TEC-Cooling Requirement120 W120 W
Dimension (W/H/L)35 mm x 22 mm x 55 mm40 mm x 28 mm x 70 mm
Operating Temperature15 ... 35°C15 ... 35°C



Downloads

  • CA30-CA40
